Digital Display Glue Dispenser, Automatic peristaltic Glue Dispenser, Manual/Automatic Mode, Component Automatic Timing Function

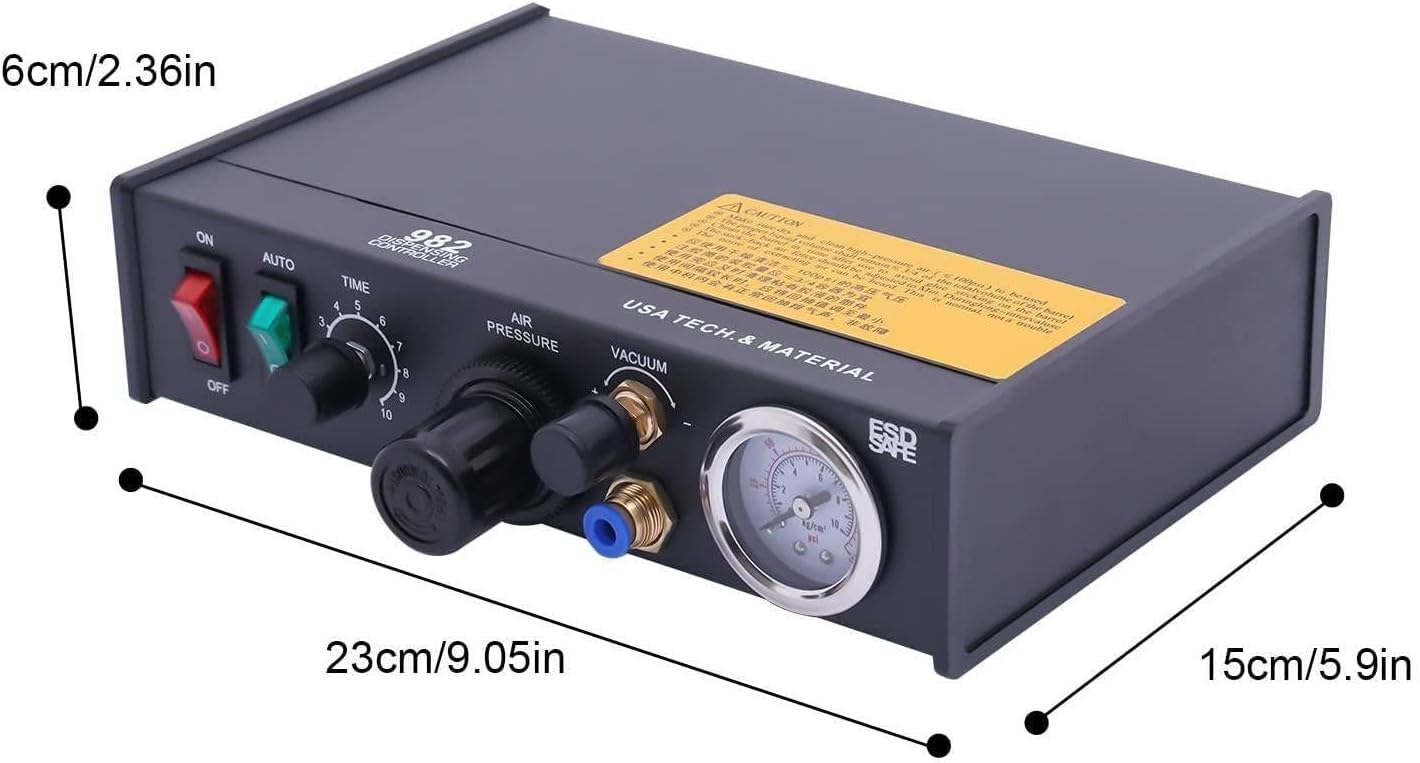

Semi-automatic glue dispensing machines are suitable for most yellow glue, quick-drying glue, epoxy resin, etc. Specifications Material: Metal Glue dispensing method: Manual/semi-automatic Minimum glue dripping amount: 0.01ml Glue dispensing time interval: 0.1-9.9s Automatic timing (adjustable): 1-30s Repeat accuracy: ±0.5% Internal voltage: 12-24V DC Input air pressure: 2.5-7bar (35-100psi) Output air pressure: 0.1-5.5bar (1-78psi) Power supply: 110V-220V/50-60HZ Power consumption: 20W Product size: 23*15*6cm/9.05*5.9*2.36in Packaging size: 20*26*14cm/10*9*12.5in Gross weight: 2.1kg/4.63 lbs Package includes: 1* Dispensing machine host 1* Manual switch 1* Foot switch 1* Air pipe 1* Power cord 1* Dispenser stand 2* Liquid barrel 6* Dispenser needles 1* Instruction manual Notes: The input high pressure should not exceed 7 bar (100psi), and the maximum working pressure of the glue dropper should not exceed 5.5 bar (78psi). If the working air pressure is higher than 4 bar, please use an aluminum connector instead. If conditions permit, please store all materials at a constant temperature (5°) as instructed to ensure that the concentration does not change significantly during use. When the material concentration is too high (difficult to flow), it cannot drip. If you need to use it, please dilute it according to the manufacturer's instructions. In the automatic state, it is generally more appropriate to adjust the air pressure in the machine to 1-2.7bar (15-40psi). When working in the automatic state, the strength of the vacuum tube to draw back the air should be adjusted to an appropriate position.

• 【Widely used】Automatic glue dispensing machines are widely used in electronics, aviation, optics, chemicals, automobiles, medical, petroleum, packaging, jewelry, machinery and other industries
• 【Semi-automatic glue dispenser】It can be glued automatically by the machine and can be precisely controlled by a single-hole manual switch. If you want to your hands, you can set the switch to the automatic position to achieve a more efficient and higher-quality working method.
• 【Quick start】This product uses high-quality electronic valves, which can instantly start the diaphragm valve and improve work efficiency by more than 80%. The use of high-end all-copper coil can stabilize voltage changes and extend service life.
• 【High precision】The glue dispenser can accurately control the number of spray points and the spray point cycle. The minimum glue dripping amount is 0.01ML, and the glue spraying interval is 0.01~99.99S. It can accurately drip glue, and the repetition accuracy can reach about 0.5%.
• 【Service】: We are very sorry for the shopping experience you have experienced. If you have any problems with the goods you received, please contact us and we will serve you 24 hours a day.
