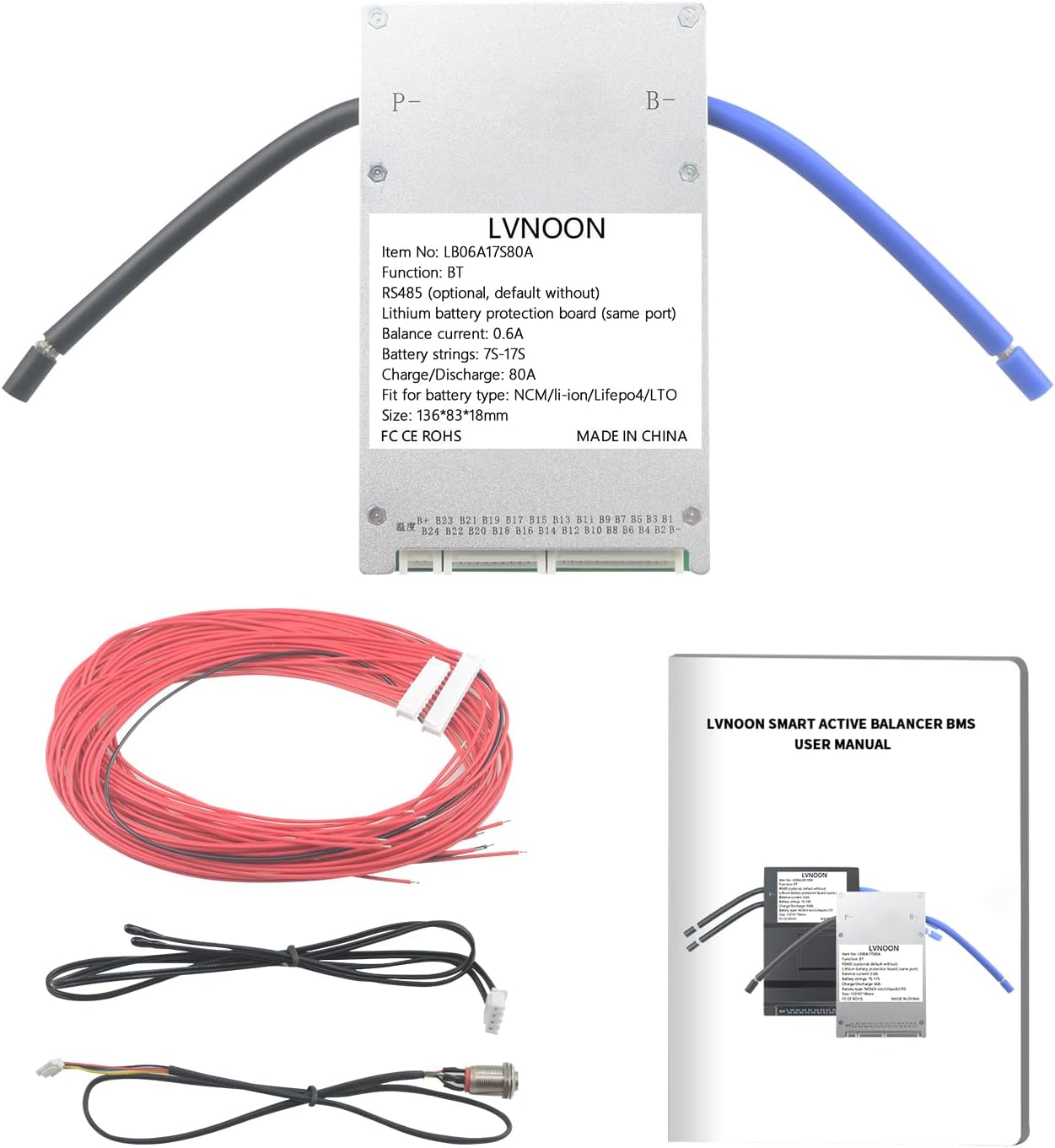

LB06A Smart Active Balancer BMS Lithium Battery Protection Board for Li-ion NCM LFP LiFePo4 Battery Management System 7S 8S 10S 12S 16S 17S 80A 24V 48V with APP Control (7-17S, 80A)
Product details
| Management number | 209123781 | Release Date | 2026/03/29 | List Price | $21.20 | Model Number | 209123781 | ||
|---|---|---|---|---|---|---|---|---|---|
| Category | |||||||||
- LVNOON LB06A series Smart active balance BMS lithium battery protection board fit for Li-ion NCM LFP LiFePo4 LTO Battery Management System 7S to 24S 60A 80A 100A 120A 150A Continuous charge/discharge current available with smartphone APP control
- Suitable for 1V-5V Li-ion NCM LFP/LiFePo4 LTO battery types. Support series connection, suitable for 7-24S battery packs with voltage 24V to 84V.

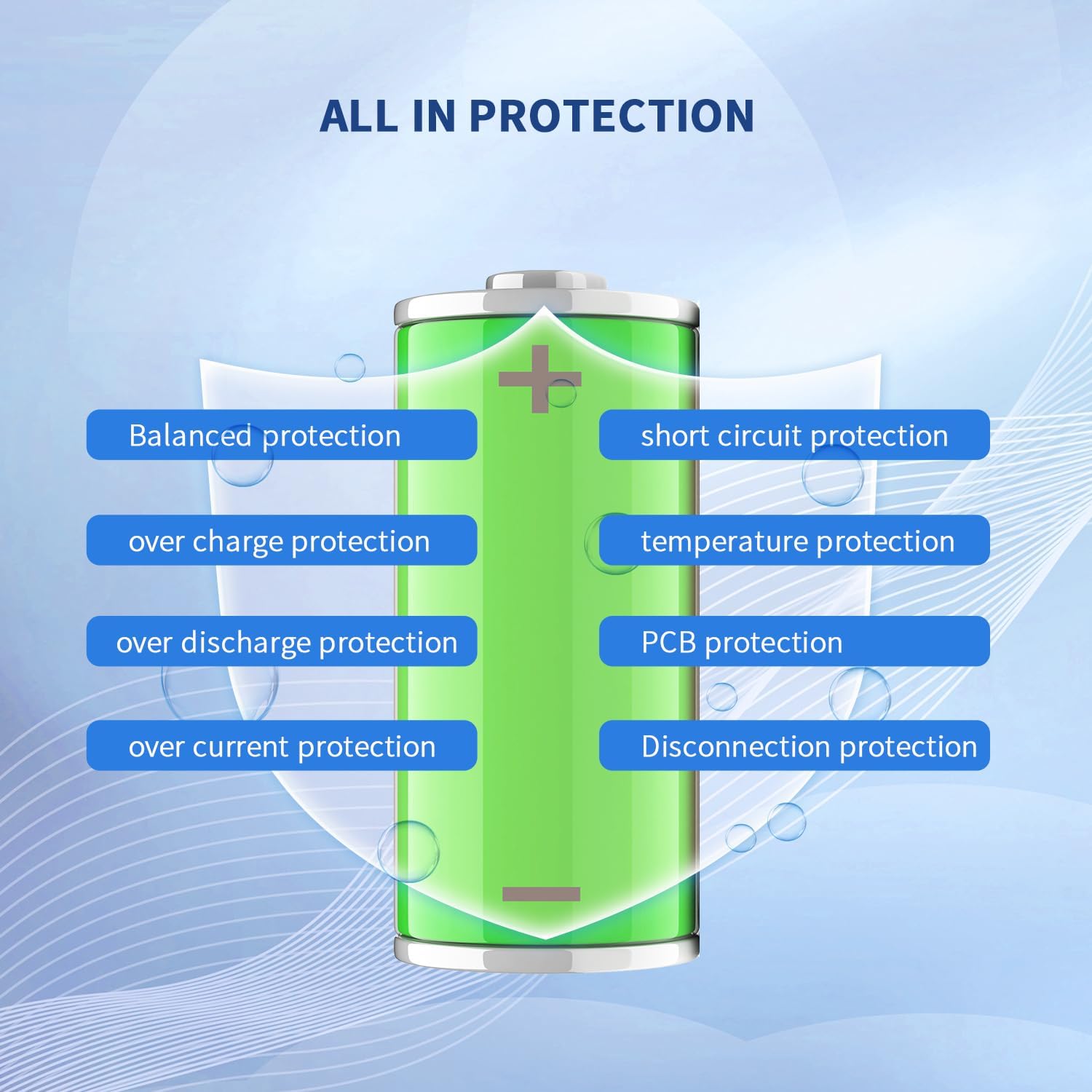

- All in protection: With Balanced protection, over charge protection, over discharge protection, over current protection, short circuit protection, temperature protection, PCB protection, Disconnection protection protect your battery better.
- Support Single battery cell voltage range 1V~5V, equalization accuracy ±5mV with high precision voltage acquisition (≤20mV) & high precision current acquisition (≤2%@FS) and Isolated power circuit
- Support more communication: Can add extra RS485 module / GPS module /LCD displays to work with the LVNOON smart active BMS together. If you need "CAN function" or "heat function", please contact us in advance.

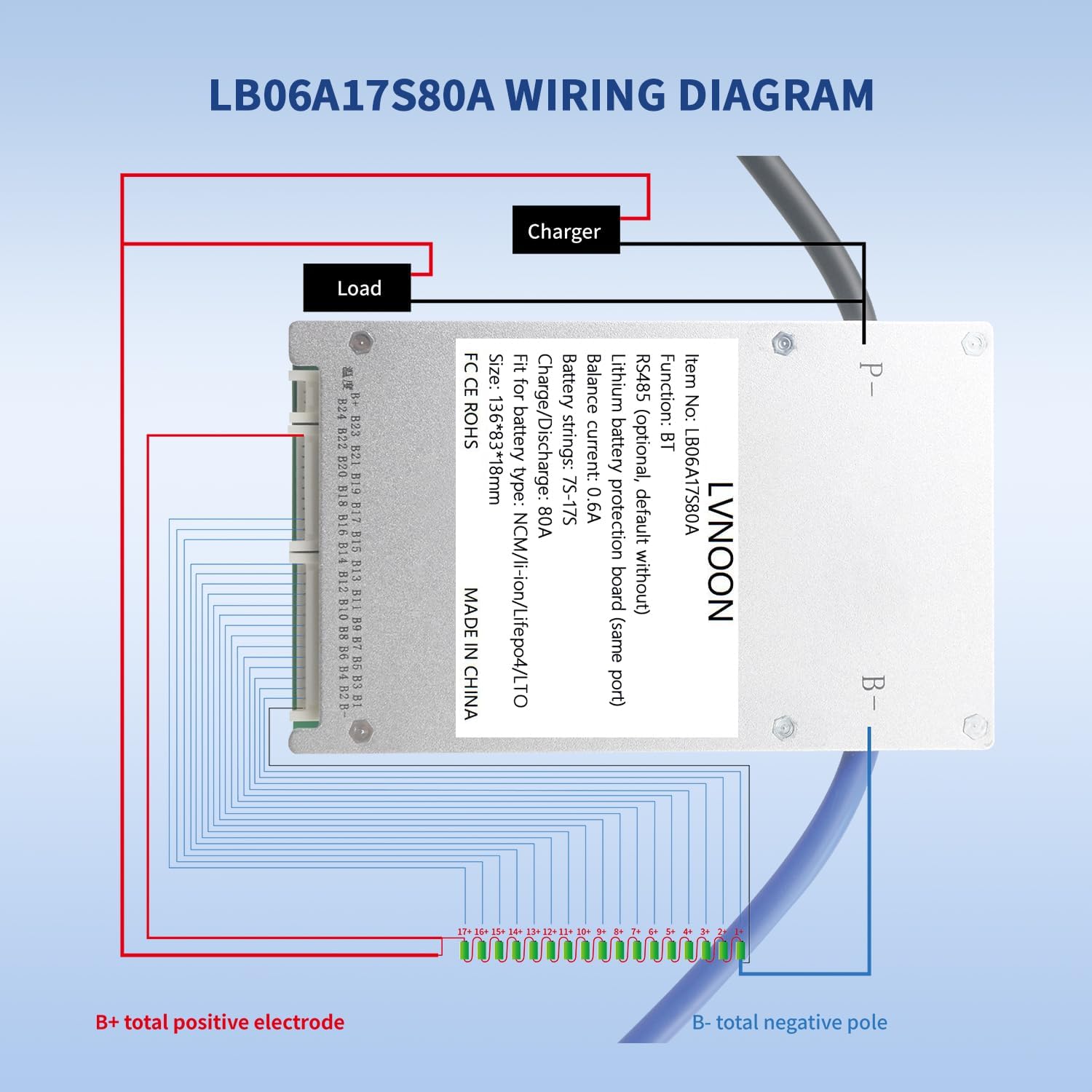

- Easy to Use: 1. Weld the wires 2. Download the APP & use switch to activate the BMS 3. Turn on smartphone BT and find the relevant serial number to check all the battery data. The smartphone app fit for IOS & Android smart phones
